SDI 인터컴 계정과 광섬유 시스템에 대한 단순한 EFP

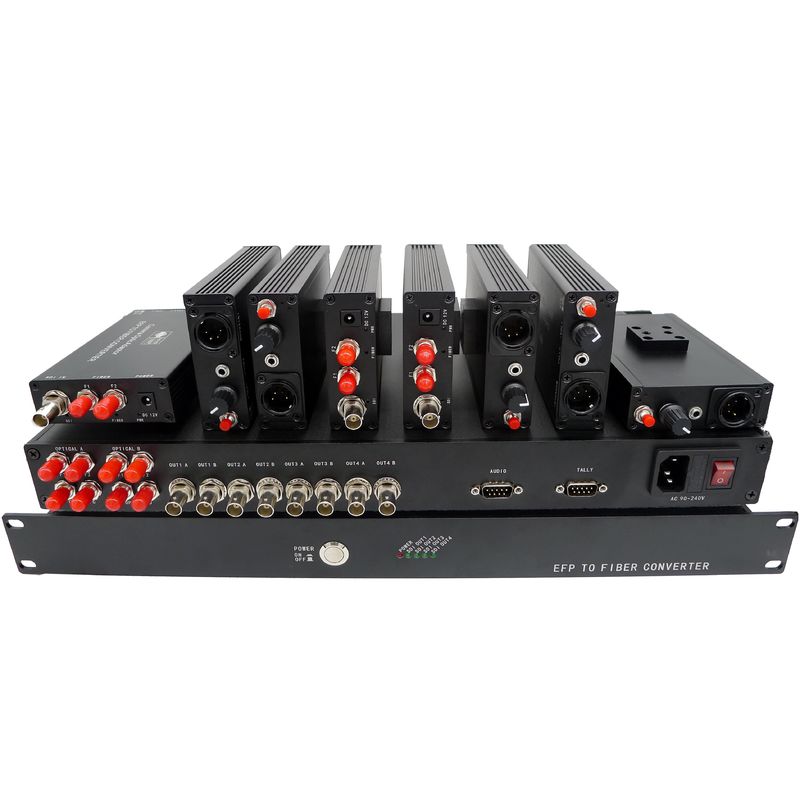

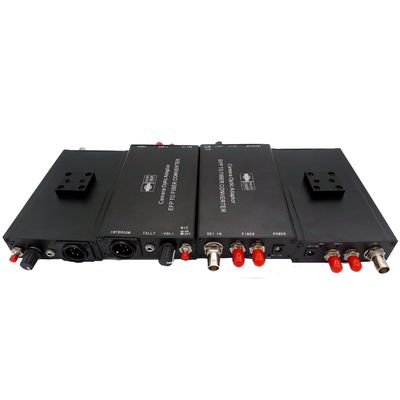

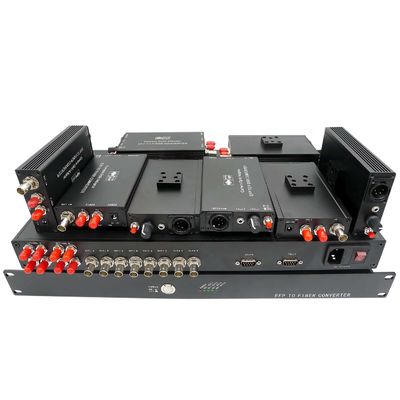

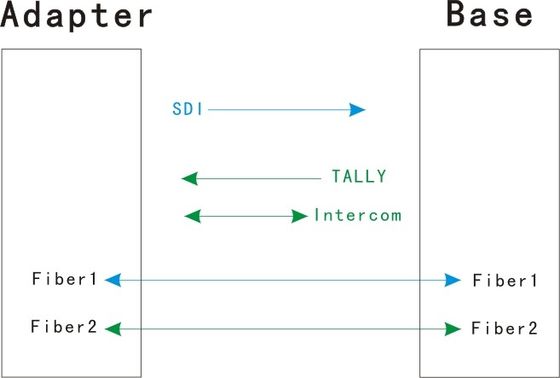

Simple EFP To Fiber includes a Camera Optic Adaptor and a Optic Base Station. The system transports 1 ch 3G/HD-SDI signal from the camera to the Base Station, intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a fiber cable, insuring robust, trouble-free connectivity on any studio or remote production. The bottom of the screw hole can be fitted with a camera shoe mount. Because of its simple function, 4 bases can be combined into one Optic Base Station. Features •1 ch forward SDI •Handle all Pathological patterns •Automatic cable equalization to ensure signal integrity •3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M •10+Km on single mode fiber transmission •Mic inputs with mute and pre-amps •Headphone with volume up or down •Tally LED+/- output or dry Contact Closure optional •Genlock or TC/BB are optional •Remote control data is also optional •Bottom screw hole can be installed with a camera shoe mount
